Image REF# Make & Model DESCRIPTION

5259
Calculex Addiator
Calculate slide chart of plastic
100x171x3 mm
Front Scales: See Picture
Back Scales: See Picture

0582
Calculigraphe H.C. Système Boucher
Generic watch type of metal/glass
57x17 mm
Front Scales: L n3
Back Scales: S n n2

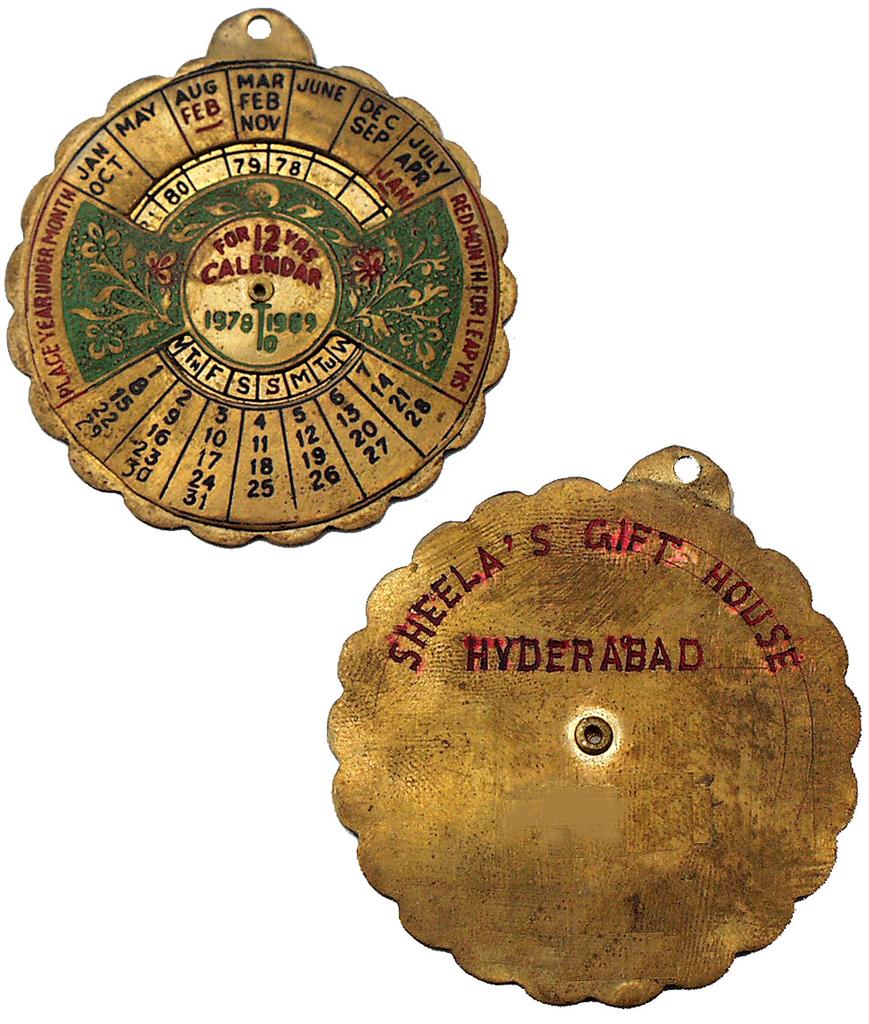

0583
Calendar for 12 years 1978-1989
Other disc of brass
48x0.8 mm (1978)
Front Scales: 1 2 ( 3 4 )

0585
Cameron Flange
Technical slide chart of cardboard
254x127 mm (1988)

0586
Campina BTW 16% Tabel
Financial table of plastic
110x155x1 mm

5420
Canton Lautsprecher Wahlscheibe
Electrical disc of cardboard
180x0.5 mm
Front Scales: Watt Sinus ( GL series m2 )

0588
Carbic Otis King's Calculator Model K
Generic cylinder of metal/chrome
24x260 mm
Front Scales: C D L
Scale 423 and 414

0587
Carbic Otis King's Calculator Model L
Generic cylinder of metal/chrome
24x260 mm
Front Scales: C D L
Scale 429 and 430

5305
Cardiac Pacemakers Physiologic Parameters Calculator
Medical slide chart of cardboard
213x97x3.5 mm (1984)
Front Scales: See Picture
Back Scales: See Picture

0591
Carroll AN 5834-1 Stock no. 6217 - FAA 46
Aviation disc of metal
125x284x10 mm
Front Scales: 1 ( 2 3 4) + 3 windows
Back Scales: 5 ( 6)

0590
Carroll MB - 2A
Aviation disc of plastic
108x35 mm
Front Scales: 1 ( 2 3) ( 4 5 6 7) + 4 windows
Back Scales: 5 windows

2772
Casella Anderson's Improved Slide Rule (for foot wear - non-logaritrhmic)
Generic slide rule of wood/celluloid
364x49x10.5 mm
Front Scales: 300 mm || 0 1 2 3 [ 0 1 2 3 ] 0 1 2 3 4 5 6 7 || 12inch

0592
Cassani Marcantoni Milano 25 R
(Milano, Italy)
Generic slide rule of plastic
297x37.6x7.5 mm
Front Scales: 27cm // K A [ B CI C ] D L || 10inch
Back Scales: [ S S&T T ]

3735
Celanese (Amcel) Circular Slide Rule for Rodmaking Calculations
Log/tech disc of plastic
184 mm Front Scales: C ( D + others in windows)
Back Scales: Graphs

3474
Cellograf Leitz
Photography disc of plastic
75x100 mm

5377
Cellograf Peritrate 80
Medical slide rule of plastic
140x82x0.8 mm
Front Scales: See Picture
Back Scales: See Picture

5363
Cellograf Sace Kabelschutz
Technical slide chart of plastic
295x151x1.8 mm
Front Scales: See Picture
Back Scales: See Picture

5330
Cellograf Sace Regle a Calcule (Circuit Breaers)
Electrical slide chart of plastic
295x86x1.6 mm
Front Scales: See Picture
Back Scales: See Picture

1190
Chadburn Farmar's Spirit
Log/tech slide rule of all wood
581x57x6 mm
Front Scales: diverse
Back Scales: diverse

3248
Chemstrand
Generic slide rule of plastic
329x48x4 mm
Front Scales: L K A [ B T ST S ] D DI P
Back Scales: LL01 LL02 LL03 DF [ CF CIF CI C ] D LL3 LL2 LL1

3695
Chinese 1203, by 4th factory Shangaï,
generic slide rule of plastic
144x31.5x3.5 mm
Front Scales: K A [ B CI L C ] D ST
Back Scales: [ S T ]

3247
Chinese no. 1003
Generic slide rule of plastic
349x55x5 mm
Front Scales: lni-2 lni-1 lni0 lni1 DF [ CF CIF H0 H1 H0 CI C ] D ln1 ln0 ln-1 ln-2
Back Scales: sh0 sh1 cu1 cu2 cu3 [ lg1-1 tg0 tg1 tg2 sin0 srt-1 C ] D sq2 sq1 th0 ch1

0594
Chrysler Psychrometric
Log/tech slide rule of plastic
191x29x3 mm
Front Scales: 1 2 [ 3 4 ] 5 6

0595
CIBA E.C.G. Calculator (heart rate).
Medical slide chart of plastic
164x40x1.2 mm
Front Scales: 10cm
Back Scales: [ 5cm 1 2 ]

5376
Ciba Obstetric Calculator The Medical Slyd-Rul
Ciba, Summit, N.J.
Conversion slide chart of plastic
140x35x1.6 mm
Front Scales: See Picture
Back Scales: See Picture

0600
Clarkson Snijsnelheden en aanzetten voor Autolock type "S", Machining Speed and Feed
Technical slide chart of cardboard
76x154x1.2 mm

5381
Clarkson Voedings- en Snelheidstabel voor freesbanken, Machining Speed and Feed
Technical slide chart of cardboard
76x153x1 mm
Front Scales: See Picture
Back Scales: See Picture

0601
Classic
Generic slide rule of wood/plastic
293x32.7x10 mm
Front Scales: 10inch // L A [ B S T C ] D L || 26cm

0603
Classic Series I
Generic slide rule of wood/plastic
284x29.5x10 mm
Front Scales: 10inch // A [ B C ] D || 26cm

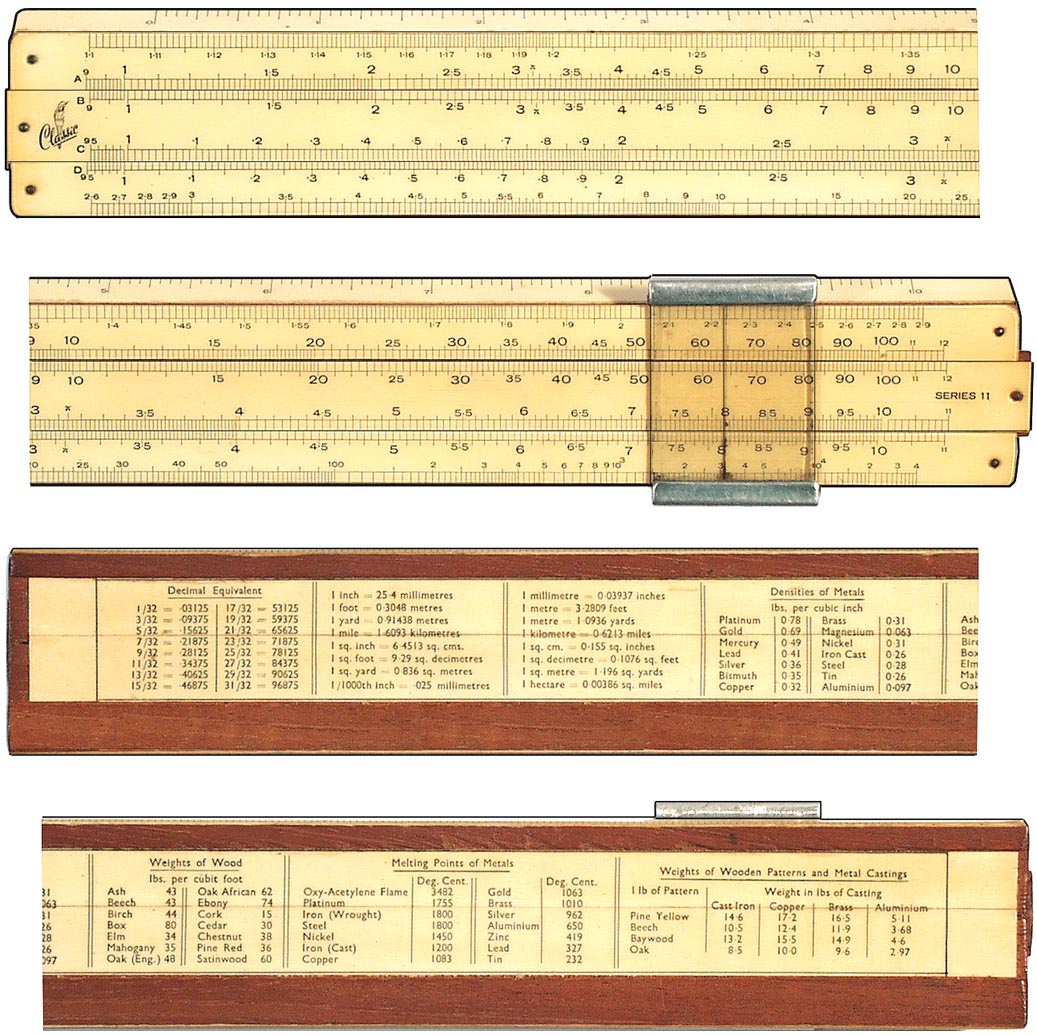

0606
Classic Series II
Generic slide rule of wood/plastic
291 x32x10 mm
Front Scales: 10inch // LL2 A [ B C ] D LL3 || 26cm

0609
Clemons Simplified Flight Calculator (John Clemens, US Pat. 1969939)
Aviation disc of plastic
246x89x15 mm (1942)
Front Scales: 7 scales with slide and arms

5409
Colard Inc. Conversion Calculator
Conversion disc of cardboard
127x1 mm
Front Scales: Temperature, Flow, Viscosity, Pressure

2849
Collard Motor/Price Selector B - 111 (Reliance Electric Co, Cleveland, OH)
By Miller Dial, technical slide chart of cardboard, 305x128x2 mm

1548
Colour code Resistors and Capacitors
Technical slide chart of plastic
170x46x3 mm

5271
Combivent Lung Function Computer
Medical slide chart of plastic
166x86x0.9 mm (1981)
Front Scales: (Female) See Picture
Back Scales: (Male) See Picture

5408
Comfort Schornsteinverlust
Log/tech disc of cardboard
118x1 mm (1961)
Front Scales: %% Temp °C ( % CO2 )

5272
Commonwealth Home Energy Cost Selector
Technical slide chart of cardboard
101x227x0.8 mm (1986)
Front Scales: See Picture
Back Scales: See Picture

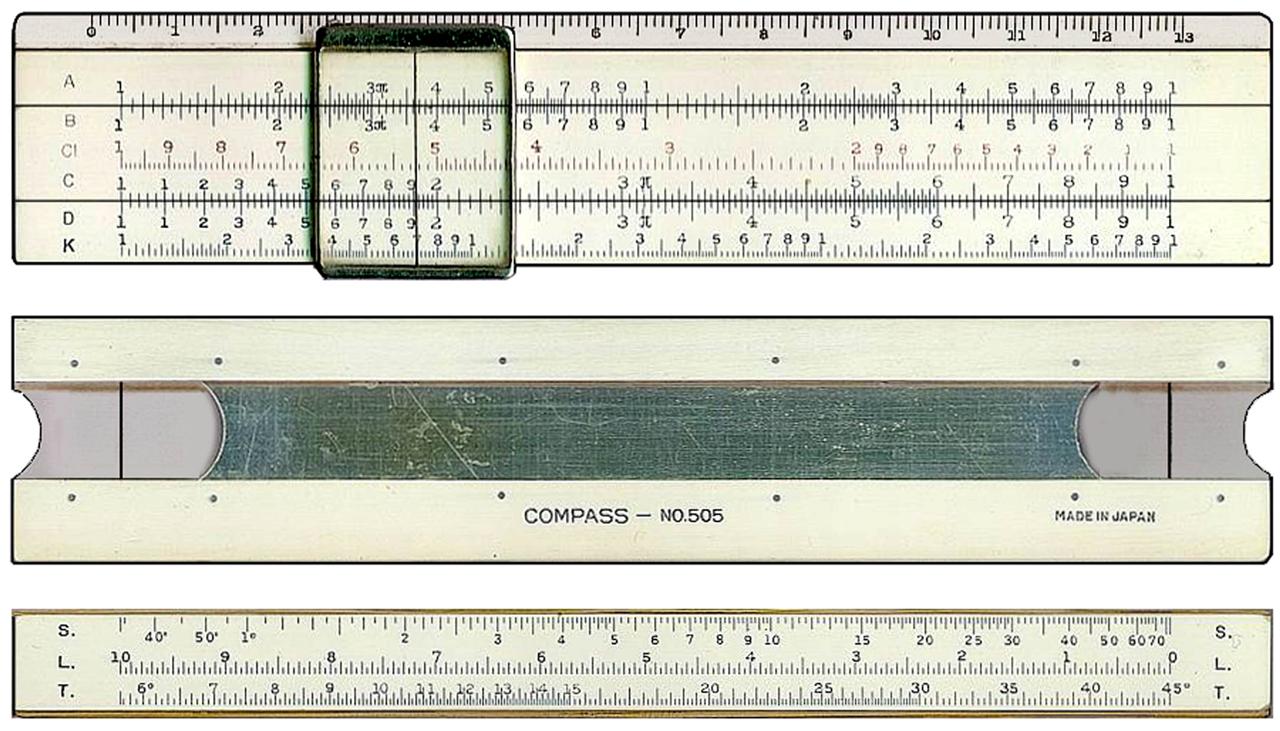

5091
Compass 505 (Relay - Japan)
Generic slide rule of plastic/metal
Front Scales: 13cm // A [ B CI C ] D K

5264
Computer and Slide Charts - Steam Loss Calculator (Furmanite Engineering Ltd, Cumbria, England)
Log/tech slide chart of plastic
161x80x0.7 mm
Front Scales: See Picture
Back Scales: See Picture

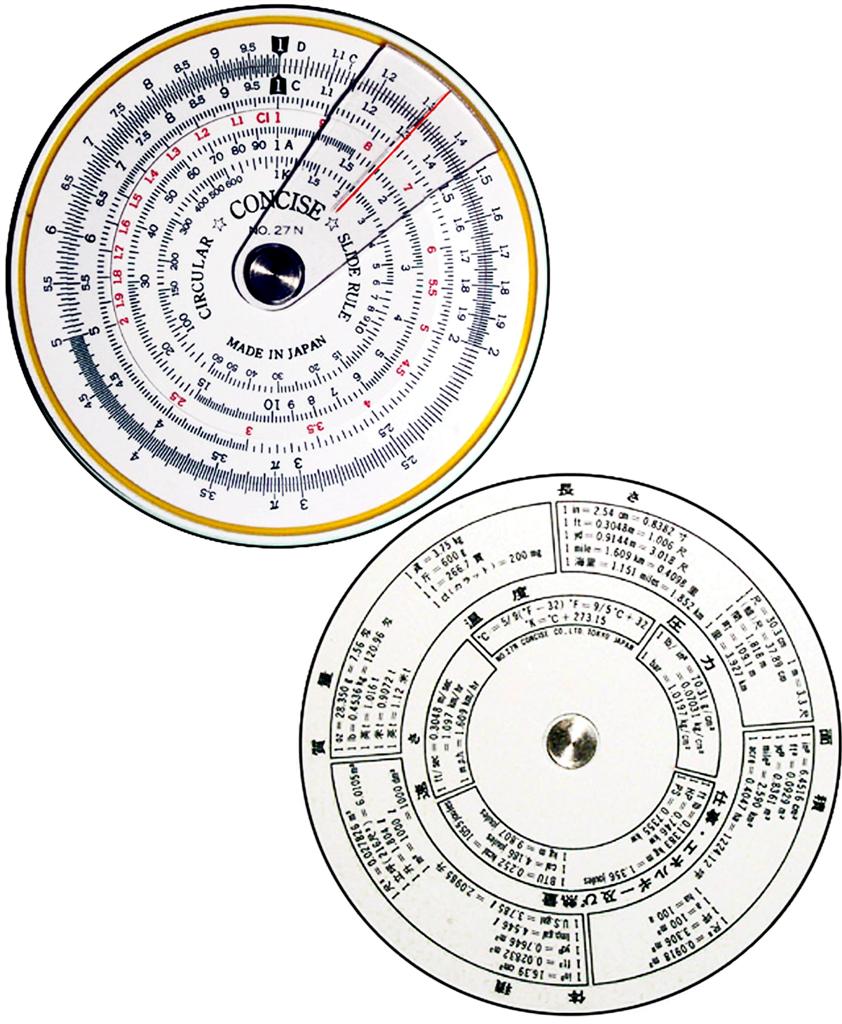

5647
Concise 27 N Circular Slide Rule (Japan)
Generic disc of plastic
Front Scales: D ( C CI A K)
Back : Equivalents In Japanese

2797
Concise 270 Circular
Generic disc of plastic
101x3 mm
Front Scales: L D ( C CI A K )
Back Scales: DI D ( S T1 T2 )

0615
Concise 28 Circular
Generic disc of plastic
80x2.4 mm
Front Scales: D ( C CI A K )
Back : Equivalents

0617
Concise 28 w/ Gas Tables
Concise 28 Gas
Front Scales: D ( C CI A K )
Back : Equivalents (Alternate Back)

0620
Concise 28 N
Generic disc of plastic
84x2 mm
Front Scales: D ( C CI A K )

3053
Concise 300 Circular
Generic disc of plastic
110x3 mm (1961)
Front Scales: K A D ( C CI B L )
Back Scales: LL3 LL2 D ( C S T1 T2 ST )

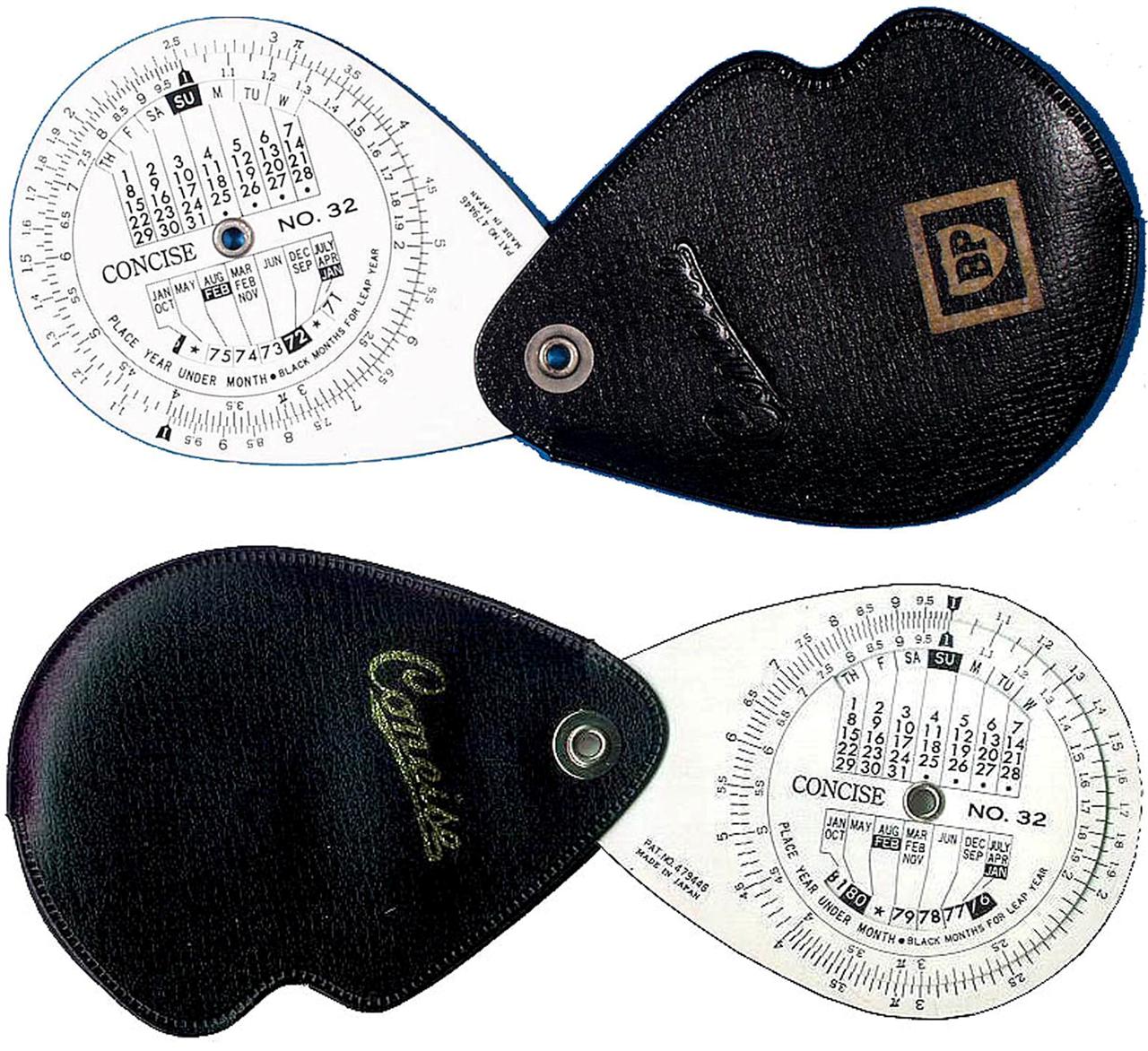

0623
Concise 32 and Calender Key Fob
Generic disc of plastic
50x70x1.5 mm (1960)
Front Scales: C ( D 1 2)
Back Scales: C ( D 1 2)

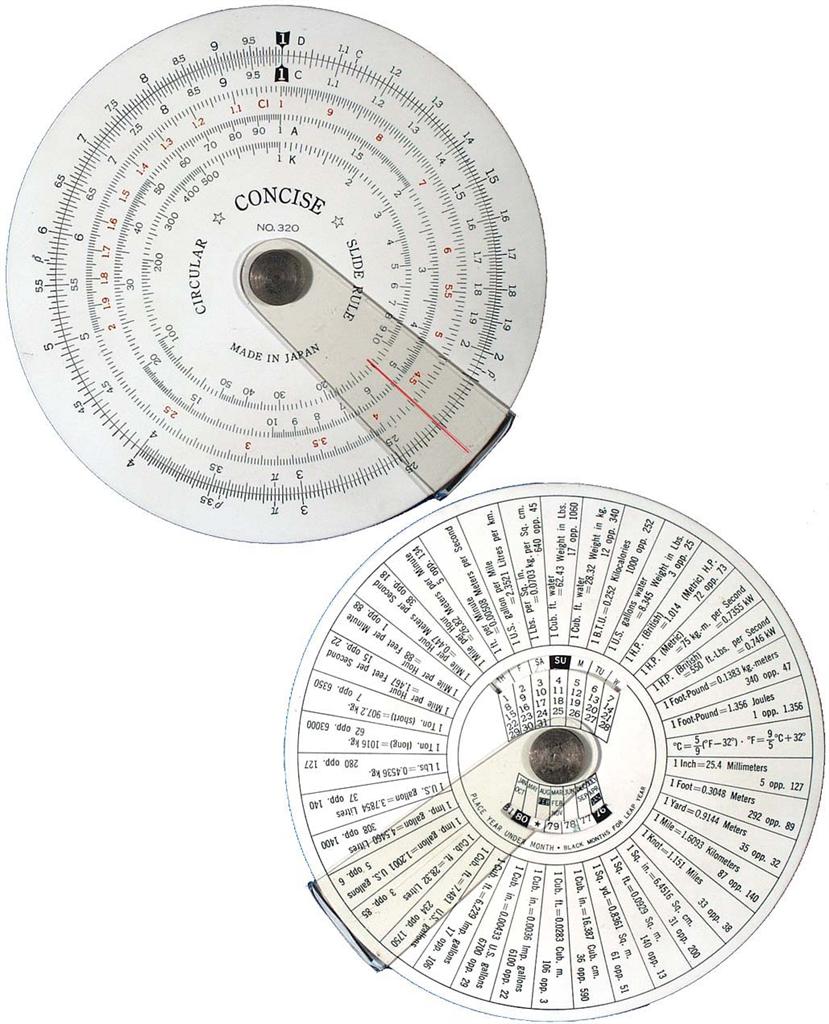

0625
Concise 320 Circular
Generic disc of plastic
100x2 mm
Front Scales: D = C CI A K
Back : Equivalents

5035
Concise 380 Radio Computer (Frequency and Impedance)
Log/tech disc
110 mm
Front Scales: See picture
Back Scales: See picture

3674
Concise 380 Radio Computer (Frequency and Impedance)
Log/tech disc
110 mm
Front Scales: See picture
Back Scales: See picture

5645
Concise 480 Japanese Characters (Finacial)
Generic disc
Front Scales: A D ( C CI B K L )
Back Scales: Months, Days of Mo nth( Days of Year, etc )

0629
Concise 600 Data Computer w/ Slide out Charts
Generic disc of plastic
75x110x2.5 mm (1974)
Front Scales: D ( C CI L A S T K ) || 4IN 10CM
Chart: Periodic Table of Elements
Chart: Mass Length, Area, Volume, Force
Chart: Velocity, Flow Rate, Pressure, Energy, Gas Constants

5036
Concise 700 Data Computer w/ Slide out Charts
Generic disc of plastic
75x110 mm
Front Scales: 4inch || D ( C CI L A S T K ) || 10cm
Chart: Equivalents
Chart: Mass Lengtyh, Area, Volume, Force
Chart: Velocity, Flow Rate, Pressure, Energy, Gas Constants

3942
Concise Bitumen Volume Calculator (Designed by M.V. Douglas)
Technical disc of plastic
Front Scales: D ( C CI A)
Back Scales: Tar and Tar-Bitumen Mixtures (12 scales)

0626
Concise CTCS 552
Generic disc of plastic
75x110 mm
Front Scales: D ( C CI L A K ) || 4IN 10CM
Chart: Table of Elements
Chart: Mass Length, Area, Volume, Force
Chart: Velocity, Flow Rate, Pressure, Energy, Gas Constants

5054
Concise Multi Calculator by Sama & Etani With Addiator
Generic disc of plastic
75x110 mm
Front Scales: D ( C CI L A K ) || 4IN 10CM
Back: Addiator
Chart: Mass Length, Area, Volume, Force
Chart: Math Formulas, Chemical and Physical Data, Pressure, Energy, Gas Constant

3669
Concise Radiological Tables and Circular Slide Rule (Mallinckrodt Pharmaceuticals)
Medical disc of plastic
Front Scales: A D ( CT B DT degC degF)
Back: 15cm, Bone tables, 6in

3191
Concise Stadia Computer (Japan)
Generic disc of plastic
96.5x3 mm
Front Scales: D ( C S T S&T L)
Back Scales: D ( sincos cos2 plus 2 scales 40'-5° and 5'-40' )

5037
Concise Type E, Weights and Measures Conversion Tables
Generic disc of plastic
Front Scales: Length || D ( C CI A K) || Weight
Back: Cubic & Capacity || Square
Slide Chart: Length, Weight
Slide Chart: Cubic, Square

0631
Controller Munchen 15 (Germany)
Generic disc of metal
75x3.5 mm
Front Scales: C ( D n2 n3)
Back Scales: 20cm

0635
Controller 110 R (W. Germany)
Generic disc of metal
110x3.5 mm (1961)
Front Scales: C ( D CI n2 )
Back Scales: 30cm

0636
Controller 200 R (W. Germany)
Generic disc of metal
220x3.5 mm (1961)
Front Scales: C ( D CI n2 )
Back Scales: 60cm

0632
Controller 75 R (W. Germany)
Generic disc of metal
75x3.5 mm (1961)
Front Scales: C ( D CI n2 )
Back Scales: 20cm

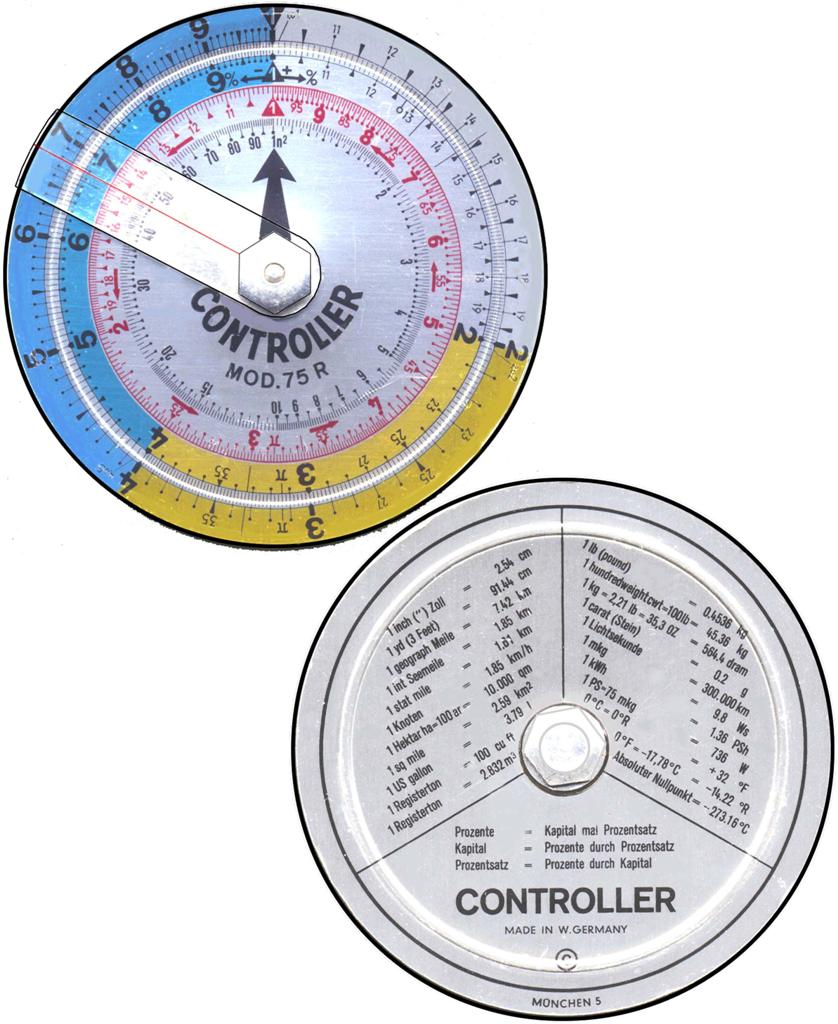

5445
Controller 75 R
Generic disc of metal
75x3.5 mm (1961)
Front Scales: C ( D CI n2)

0638
Cook Maker London gauging (Wellington & Crown Court, SOHO)
Alcohol slide rule of all wood
304x29x19.5 mm (After 1824)
Front Scales: Many scales see picture
Back Scales: Many scales see picture

3905
Cosmicar / Pentax CCTV Lens Selector
By Datalyzer slide charts, photography disc of plastic/paper
89.5x1.5 mm (1955)

3876
Cox & Stevens A-30 & A-30A Load Adjuster
Aviation slide rule of bakelite
310x44x10 mm

0643
Cox & Stevens AT-7, SNB-2 Load Adjuster
Aviation slide rule of plastic, 310x44x10 mm

0649
Cox & Stevens B- 24 D E G H & J Load Adjuster
Aviation slide rule of vinylite, 310x44x10 mm

0652
Cox & Stevens B-26 Load Adjuster
Aviation slide rule of wood/plastic, 311x44.5x9.5 mm

0655
Cox & Stevens B-29 & B-29A Load Adjuster
Aviation slide rule of plastic, 310x44x10 mm

0659
Cox & Stevens B-47 B & E Load Adjuster
Aviation slide rule of plastic, 310x44x10 mm

0641
Cox & Stevens CG-4A LRW-1 Load Adjuster
Aviation slide rule of vinylite, 310x44x10 mm

2700
Cox & Stevens Intercept Officers Equipment Type 1
Aviation disc of perspex

0668
Crowe Name Plate and MFG, Computer, True Airspeed A.C. Type G-1 (Chicago)
Aviation disc of plastic
204x3 mm (1945)
Front Scales: 1 2 ( 3 4 )

0670
Cruver Computer Altitude Correction AN 5837-1
Aviation disc of plastic
203x3 mm
Front Scales: 1 2 ( 3 4 )

3870
Cruver Computer True Airspeed A.C. Type G-1
Aviation disc of plastic
204x3 mm (1945)
Front Scales: 1 2 ( 3 4 )

0669
Cruver Time Distance Type D-4
Aviation disc of plastic
108x2 mm
Front Scales: 1 ( 2 3 ) + window 1
Back Scales: 4 5 ( 6 7) + window 2

0671
C-Thru Ruler Company PS69 Proportional Scale (Document reduction)
By C-Thru , log/tech disc of plastic
127x0.8 mm
Front Scales: A ( B ) ( 1 2 )

0675
C-Thru Ruler Company S889
Generic slide rule of plastic
315x42x4 mm
Front Scales: LLO1 K A [ B T ST S ] D L LL1
Back Scales: LL02 LL03 DF [ CF CIF CI C ] D LL3 LL2

0673
C-Thru Ruler Company S96 Circular 6"
Generic disc of plastic
152x1.3 mm
Front Scales: K D ( C B ) A ( CI ) L
Back Scales: S L T

2851
CTIP 399 Valve chart (Compagnia Tecnica Industrrie Petroli, Roma Italy)
Technical slide chart of cardboard/plastic
275x158x1 mm (1960)

2852
CTIP 511 Valve chart (Compagnia Tecnica Industrrie Petroli, Roma Italy)
Technical slide chart of cardboard/plastic
275x150x1 mm (1968)

2853
CTIP 512 Pipe chart (Compagnia Tecnica Industrrie Petroli, Roma Italy)
Technical slide chart of cardboard/plastic
275x166x1 mm (1960)

2850
CTIP Conversion chart
Conversion slide chart of cardboard/plastic
285x159x1 mm (1960)

0676
CTM Kreisrechenscheibe
Military disc of metal
220x5 mm (1969-1980)
Front Scales: tg tg k ( Sin Sin k )

3011
Cultuurtechniek
Technical rule of all wood, 750x50x15 mm
Front Scales: 1 2 3 4 5 6
Back Scales: 7 8 9 10 11 12

5367
Curtec Comptoir des Lamines a Froid & Toles (weights of metal rod)
Technical slide chart of cardboard
261x76x1 mm (1955)
Front Scales: See Picture
Back Scales: See Picture

5448
Curtec Masoneilan Camflex Ventil
Technical slide chart of cardboard
320x120x1 mm
Front Scales: see picture
Back Scales: see picture

0679
CWI Breda, Rekenplank voor indirect vuur met tanks
Military disc of plastic, 227x450x5 mm

0678
CWI Correctieschijf M10, CWI - R 522 .78.19.4
Military disc of plastic
217x217x4 mm
Front Scales: 8cm 7inch ( 1 2 3 ) 4 5

Index A B C DE FG HI JK L M NO PQ R S T UVWXYZ
Copyright © 2003-
International Slide Rule Museum
